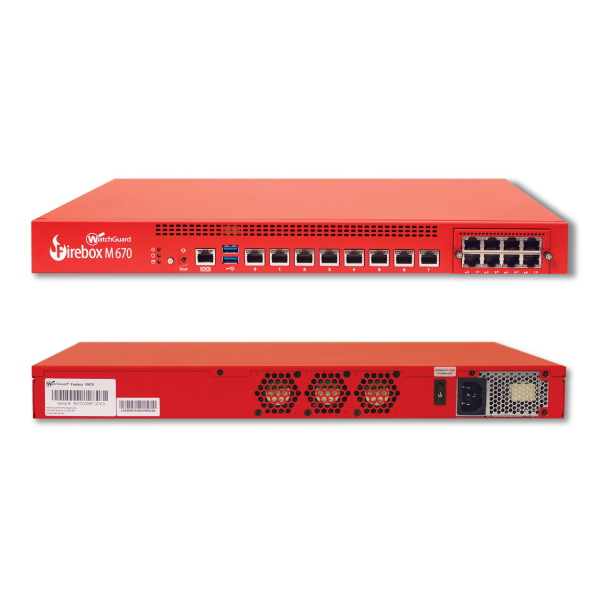

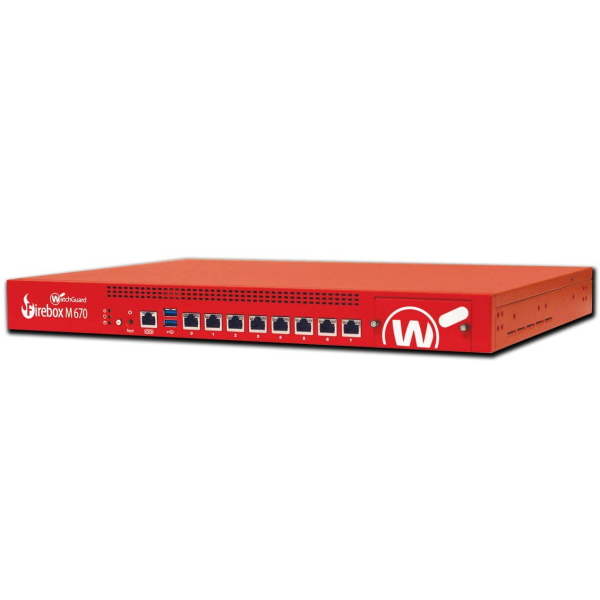

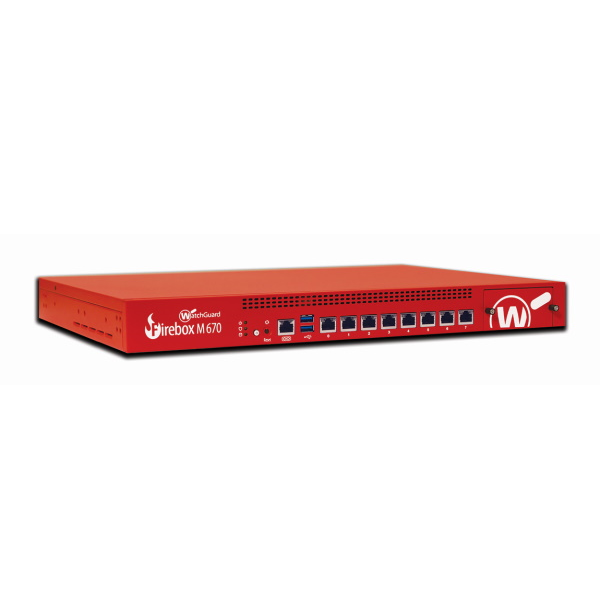

WatchGuard Firebox M670

WatchGuard Firebox M670
Brand: WatchGuard
Category: Firewall

Đánh giá của chúng tôi

Đánh giá dựa trên nhận định của chuyên gia

  • Hiệu năng 5 / 10

Midsize business and distributed enterprise


STTTính năngWatchguard Firebox M670
Firewall34 Gbps
Firewall (IMIX)11.2 Gbps
VPN (UDP 1518)7.6 Gbps
VPN (IMIX)2.6 Mbps
HTTPS (IPS enabled)4.0 Gbps
AntiVirus6.2 Gbps
IPS (fast/full scan)10.4/5.6 Gbps
UTM (fast/full scan)5.4/4.2 Gbps
Interfaces 10/100/1000*8 (optional modules available)
I/O interfaces1 SRL/2 USB
Concurrent connections8,500,000
Concurrent connections (proxy)920,000
New connections per second140,000
WSM licenses (incl)4
TDR Host Sensors included250
Authenticated users limitUnrestricted
Branch Office VPN750
Mobile VPN750
FirewallStateful packet inspection, deep packet inspection, proxy firewall
Application proxiesHTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy
Threat protectionDoS attacks, fragmented & malformed packets, blended threats & more
VoIPH.323, SIP, call setup and session security
Filtering optionsBrowser Safe Search, Google for Business
Cloud providersAWS (Static/Dynamic), Azure (Static/Dynamic)
EncryptionAES 256-128 bit, 3DES, DES
IPSecSHA-2, IKEv1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-onWindows, macOS, mobile operating systems, RADIUS, SAML 2.0
AuthenticationRADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode
Logging and notificationsWatchGuard, Syslog, SNMP v2/v3
User interfacesCentralized console (WSM), Web UI, scriptable CLI
ReportingWatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools
SecurityCC EAL4+ Pending: ICSA Firewall, ICSA IPSec VPN, FIPS 140-2
SafetyNRTL/C, CB
NetworkIPv6 Ready Gold (routing)
Hazardous substance controlWEEE, RoHS, REACH
RoutingStatic, Dynamic (BGP4, OSPF, RIP v1/v2), SD-WAN Dynamic Path Selection
High AvailabilityActive/passive, active/active with load balancing
QoS8 priority queues, DiffServ, modified strict queuing
IP address assignmentStatic, DHCP (server, client, relay), PPPoE, DynDNS
NATStatic, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation802.3ad dynamic, static, active/backup
Other featuresPort Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface

WatchGuard Firebox M670 - Subscriptions

Product Total Security Suite Basic Security Suite
Intrusion Prevention Service (IPS)
App Control
Gateway AntiVirus
Reputation Enabled Defense (RED)
Network Discovery
APT Blocker
Data Loss Protection (DLP)
Dimension Command
Threat Detection & Response
Support Gold (24×7) Standard (24×7)

WatchGuard Firebox M670 - Specs

System Performance

Firewall throughput 34 Gbps
Firewall IMIX 11.2 Gbps
Antivirus Throughput 6.2 Gbps
Concurrent connections 8,500,000
New connections/sec 140,000
IPS throughput 10.4 / 5.6 Gbps
VPN AES-128 Throughput 7.6 Gbps
VLANs 750
WSM licenses (incl) 4
TDR Host Sensors included 250
Authenticated users limit unrestricted
Branch Office VPN 750
Mobile VPN 750

Physical interfaces

GE RJ45 Ports 8 x 10/100/1000 (optional modules available)
I/O ports 1 SRL / 2 USB

Dimensions & Enviroment

Mounting 1U rack mount kit included
Dimensions Width x Depth x Height (inches) 16.85 x 12.6 x 1.73 inches
Dimensions Height x Width x Length (mm) 42.8 x 32 x 4.4 cm
Weight 18 lbs (8.17 kg)
Power supply 100-240 VAC
Power Consumption 75W
Heat Dissipation 256 BTU/h
Operating Temperature 32-104 F
Storage Temperature 14-158 F
Humidity 5-90% non-condensing
Operating Attitude 0-9843 ft at 95 F
Certifications CC EAL4+, FIPS 140-2, NRTL/C, CB, IPv6 Ready Gold (routing), WEEE, RoHS, REACH

Wireless Specification (XG Wireless only)

Product Certifications
