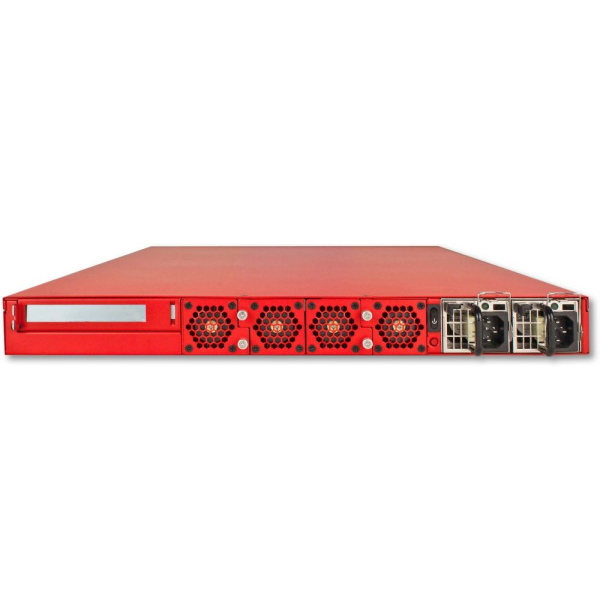

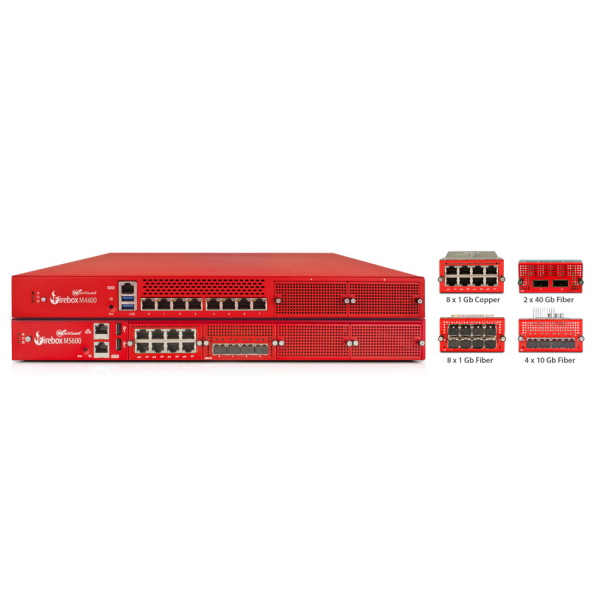

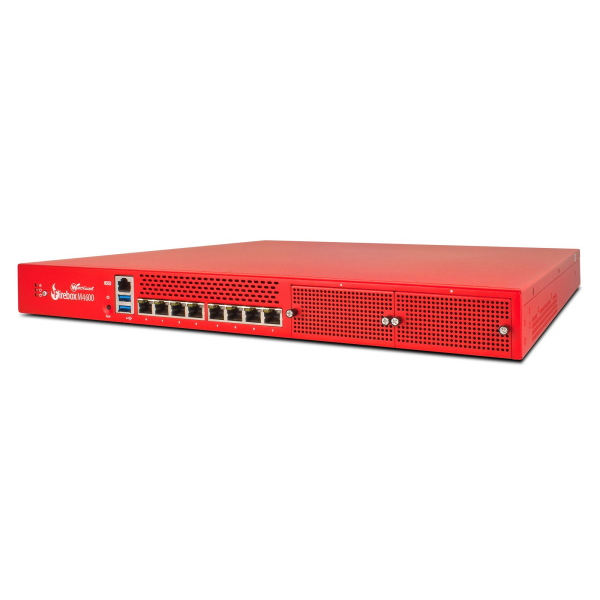

WatchGuard Firebox M4600

WatchGuard Firebox M4600
Brand: WatchGuard
Category: Firewall

Đánh giá của chúng tôi

Đánh giá dựa trên nhận định của chuyên gia

  • Hiệu năng 5 / 10

Headquarters for distributed enterprises


STTTính năngWatchguard Firebox M4600
Firewall40 Gbps
VPN 10 Gbps
AV9 Gbps
IPS13 Gbps
UTM8 Gbps
Interfaces 10/100/10008 x 1Gb
I/O interfaces1 serial/2 USB
Concurrent connections (bi-directional)7.5 million
New connections per second160,000
Authenticated users limitUnrestricted
Branch Office VPN5,000
Mobile VPN IPSec10,000
Mobile VPN SSL/L2TP10,000
FirewallStateful packet inspection, deep packet inspection, proxy firewall
Application proxiesHTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, POP3S, SMTP, IMAPS, Explicit Proxy
Threat protectionDoS attacks, fragmented & malformed packets, blended threats & more
VoIPH.323, SIP, call setup and session security
Filtering optionsBrowser Safe Search, YouTube for Schools, Google for Business
EncryptionDES, 3DES, AES 128-, 192-, 256-bit
IPSecSHA-2, IKEv1/v2 , IKE pre-shared key, 3rd party cert, Suite B
Single sign-onWindows, macOS, mobile operating systems, RADIUS, SAML 2.0
AuthenticationRADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode
Logging and notificationsWatchGuard, Syslog, SNMP v2/v3
User interfacesCentralized console (WSM), Web UI, scriptable CLI
ReportingWatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools
SecurityCC EAL4+ Pending: ICSA Firewall, ICSA IPSec VPN, FIPS 140-2
SafetyNRTL/C, CB
NetworkIPv6 Ready Gold (routing)
Hazardous substance controlWEEE, RoHS, REACH
RoutingStatic, Dynamic (BGP, OSPF, RIP), SD-WAN Dynamic Path Selection, VPN
High AvailabilityActive/passive, active/active with load balancing
QoS8 priority queues, DiffServ, modified strict queuing
IP address assignmentStatic, DHCP (server, client, relay), PPPoE, DynDNS
NATStatic, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation802.3ad dynamic, static, active/backup
Other featuresPort Independence, Multi-WAN failover and load balancing, server load balancing, transparent/drop-in mode, USB modem as a dedicated interface

WatchGuard Firebox M4600 - Subscriptions

Product Total Security Suite Basic Security Suite
Intrusion Prevention Service (IPS)
App Control
Gateway AntiVirus
Reputation Enabled Defense (RED)
Network Discovery
APT Blocker
Data Loss Protection (DLP)
Dimension Command
Threat Detection & Response
Support Gold (24×7) Standard (24×7)

WatchGuard Firebox M4600 - Specs

System Performance

Firewall throughput 40 Gbps
Antivirus Throughput 9 Gbps
Concurrent connections 7,500,000
New connections/sec 160,000
IPS throughput 13 Gbps
VPN AES-128 Throughput 10 Gbps
VLANs 1000
Authenticated users limit unrestricted
Branch Office VPN 5000
Mobile VPN IPSec 10000
Mobile VPN IPSec & SSL/L2TP 10000

Physical interfaces

GE RJ45 Ports 8 x 1G
I/O ports 1 serial / 2 USB

Dimensions & Enviroment

Mounting Sliding rack rails included
Dimensions Width x Depth x Height (inches) 17 x 1.8 x 18.5
Dimensions Height x Width x Length (mm) 431 x 44 x 468 mm
Weight 38 lbs (17 kg)
Power supply 100-240 VAC
Power Consumption 75W
Heat Dissipation 256 BTU/h
Operating Temperature 32-104 F
Storage Temperature -40-158 F
Humidity 10-90% non-condensing
Operating Attitude 0-9843 ft at 95 F
Certifications CC EAL4+, FIPS 140-2, NRTL/C, CB, IPv6 Ready Gold (routing), WEEE, RoHS, REACH

Wireless Specification (XG Wireless only)

Product Certifications

WatchGuard Firebox M4600 - Documentation

Download WatchGuard M4600 Datasheet
